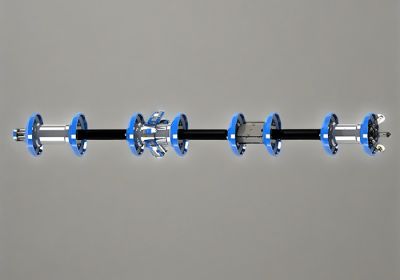

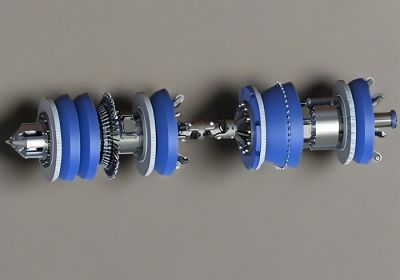

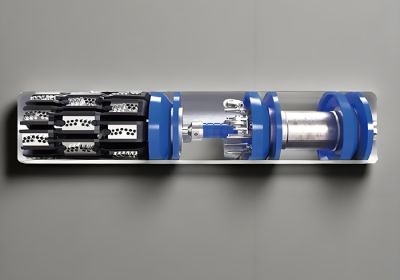

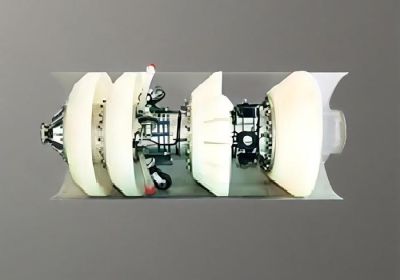

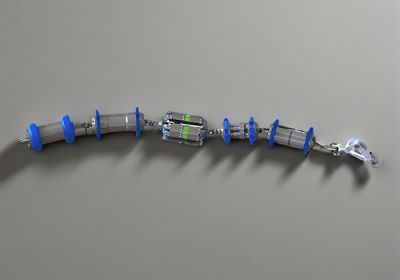

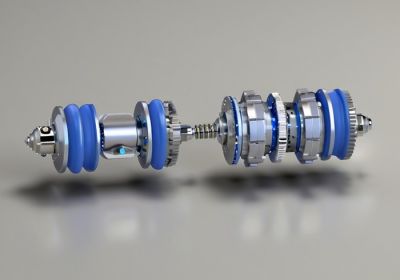

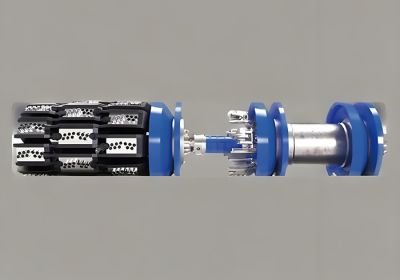

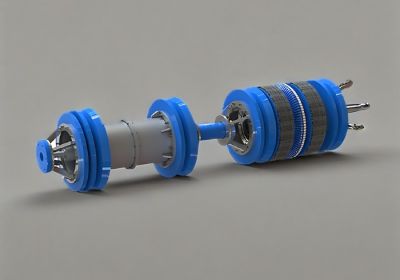

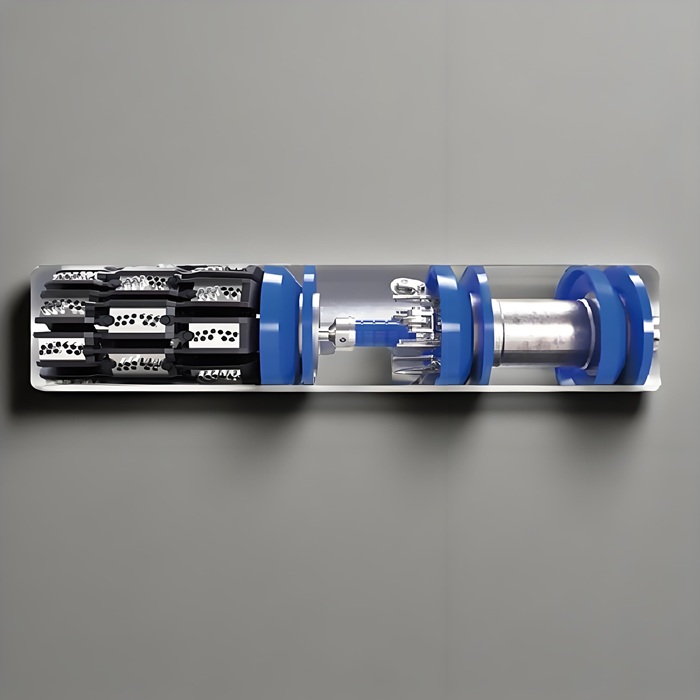

Electromagnetic Ultrasound Detector

Yaisu Intelligent | Electromagnetic Ultrasonic Detector for Oil and Gas Pipeline | Non destructive Testing Equipment

Electromagnetic ultrasonic detector is based on the magnetostrictive effect and

Lorentz force effect of metal conductors under alternating magnetic fields,

and defects are detected by forming ultrasonic waves in pipelines through electromagnetic effects.

detection of internal/external surface cracks and wall thickness measurement in oil and

gas pipelines can identify coating types and peeling conditions.

Specification range: 12 "~56"

Identification scope:

·Metal loss defects such as internal and external

wall corrosion, mechanical damage, etc

·Cracks, abnormal defects in welds

·Pipeline characteristics such as circumferential welds,

bends, and lengths

·Valves, tees, and other pipeline installations

Product features:

Suitable pipe diameter: DN50-DN1200

Detection speed: up to 3m/s (regular detection)/0.5m/s (fine mode)

Environmental tolerance: Stable operation under operating conditions of -30 ℃~70 ℃

Data output: Visual report compliant with API 1163 standard

Application scenarios:

Quality acceptance of welds on long-distance pipelines

Online monitoring of corrosion on tank bottom plate

Annual inspection of urban gas pipelines

Defect investigation of high-temperature pipelines in refineries
